Building Access

Consideration

There are no limitation for how we store the integration data, team can had decision making for this. We can store the data to postgreSQL, SQLite or just file base, but there are several points we need to stick with

I/O workload
Performance
Filtering

Resource From Client

Sample JSON Data

Before dive into building access section, take a look below data are provided from the clients for understanding the brief concept of the data relation.

Person data

Location mapping data

Tenant data

Tower data

Document

Outdated PDF

Swagger from FS: https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/swagger/index.html

Data Structure

Location Mapping Data

{
  "count": 86,
  "locationMapping": [
    {
      "beaconID": 1,
      "beaconName": "Beacons01",
      "beaconMajorCode": "0101",
      "beaconMinorCode": "010101",
      "locationID": 1,
      "locationName": "T4-L1 Zone1",
      "locationNameThai": "โลเคชั่น01",
      "projectID": 1,
      "projectName": "One Bangkok",
      "towerID": 1,
      "towerName": "Tower4(T4)",
      "zoneID": 1,
      "zoneName": "Zone 1",
      "zoneNameThai": "โซน 1",
      "floorID": 1,
      "floorName": "L1",
      "createTime": "2023-06-01 13:45:31.390",
      "updateTime": "2023-07-06 00:25:39.227",
      "active": "True"
    }
  ]
}

Person Data

{
  "count": 1,
  "data": [
    {
      "personID": "a50c364f-52ef-4d8c-96f4-67c854ef8ca7",
      "tenantIDs": [
        24
      ],
      "phones": [
        "0999999999"
      ],
      "emails": [
        "t.shin@pjoe.com"
      ],
      "locations": [
        {
          "locationID": 1,
          "locationName": "T4-L1 Zone1",
          "isDefault": false
        },
        {
          "locationID": 2,
          "locationName": "T4-L1 Zone2",
          "isDefault": false
        },
        {
          "locationID": 3,
          "locationName": "T4-L1 Zone3",
          "isDefault": false
        },
        {
          "locationID": 4,
          "locationName": "T4-L1 Zone4",
          "isDefault": false
        }
      ],
      "updateTime": "2023-08-25T10:56:18.283",
      "active": false,
      "status": "I"
    }
  ]
}

Tower Data

{
  "count": 2,
  "data": [
    {
      "towerID": 1,
      "towerName": "Tower4(T4)",
      "nameEng": null,
      "nameThai": null,
      "createTime": "05/31/2023 14:52:40",
      "createBy": 1,
      "updateTime": "05/31/2023 14:52:40",
      "updateBy": 1,
      "active": "True",
      "locations": [
        {
          "locationID": 1,
          "locationName": "T4-L1 Zone1",
          "projectID": 1,
          "projectName": "One Bangkok",
          "towerID": 1,
          "towerName": "Tower4(T4)",
          "zoneID": 1,
          "zoneName": "Zone 1",
          "floorName": "L1"
        },
        {
          "locationID": 2,
          "locationName": "T4-L1 Zone2",
          "projectID": 1,
          "projectName": "One Bangkok",
          "towerID": 1,
          "towerName": "Tower4(T4)",
          "zoneID": 2,
          "zoneName": "Zone 2",
          "floorName": "L1"
        }
      ]
    },
    {
      "towerID": 2,
      "towerName": "O3",
      "nameEng": null,
      "nameThai": null,
      "createTime": "05/31/2023 14:52:56",
      "createBy": 1,
      "updateTime": "09/12/2023 15:28:20",
      "updateBy": 1,
      "active": "True",
      "locations": [
        {
          "locationID": 85,
          "locationName": "O3-L1 Zone1",
          "projectID": 1,
          "projectName": "One Bangkok",
          "towerID": 2,
          "towerName": "O3",
          "zoneID": 1,
          "zoneName": "Zone 1",
          "floorName": "L1"
        },
        {
          "locationID": 86,
          "locationName": "O3-L1 Zone2",
          "projectID": 1,
          "projectName": "One Bangkok",
          "towerID": 2,
          "towerName": "O3",
          "zoneID": 2,
          "zoneName": "Zone 2",
          "floorName": "L1"
        }
      ]
    }
  ]
}

Tenant Data

{
  "count": 24,
  "data": [
    {
      "tenantID": 1,
      "tenantName": "Defualt Tenant",
      "nameEng": "Defualt Tenant",
      "nameThai": "ดีฟอลท์ เทแนนท์",
      "phone": "0999999999",
      "email": "Tenant@Email.com",
      "address": null,
      "showKiosk": true,
      "showReception": true,
      "remark": null,
      "createTime": "2023-06-27T00:00:00",
      "createBy": 1,
      "updateTime": "2023-06-27T00:00:00",
      "updateBy": 1,
      "active": true,
      "tenantAuthFloors": [
        {
          "locationID": 1,
          "isDefaultFloor": true
        },
        {
          "locationID": 2,
          "isDefaultFloor": false
        },
        {
          "locationID": 15,
          "isDefaultFloor": false
        },
        {
          "locationID": 16,
          "isDefaultFloor": true
        },
        {
          "locationID": 30,
          "isDefaultFloor": true
        }
      ]
    },
    {
      "tenantID": 2,
      "tenantName": "FowordSystem",
      "nameEng": "ForwardSystem",
      "nameThai": "ฟอร์เวิร์ดซิสเต็ม",
      "phone": null,
      "email": "admin@Forwardsystem.com",
      "address": null,
      "showKiosk": true,
      "showReception": true,
      "remark": null,
      "createTime": "2023-06-27T13:29:08.403",
      "createBy": 1,
      "updateTime": "2023-06-27T13:29:08.403",
      "updateBy": 1,
      "active": true,
      "tenantAuthFloors": [
        {
          "locationID": 16,
          "isDefaultFloor": true
        },
        {
          "locationID": 1,
          "isDefaultFloor": false
        }
      ]
    }
  ]
}

API Credential

Every API request to FS needs to get token from below API for token, and put in Bearer {token} header

curl -X 'POST' \
  'https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/api/Login/Login' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "username": "xxx",
  "password": "xxx"
}'

Turnstile

Swagger: https://app.swaggerhub.com/apis-docs/OB-MTEL/functional-profile-integration-fs/1.0#/Get%20Profile%20From%20QRCode/post_get_profile

Flow

Elevator Calling

Concept

One Tenant contains many Locations
One Tower contains many Locations
One Person can access many Locations
One floor can have many locations
One Location can be link with many Beacons

There are 2 types of flows for elevator calling:

user inside the building who like to go to other floor by using mobile application
user outside the building who will pass the tunstile and enter the elevator

Flow (Outside Building)

Concept

User pass turnstile by show QRCode
FS call elevator after user passed turnstile
FS call MTEL webhook for notifying the elevator has been called, refer to here
MTEL display lift information on mobile app

Flow (Inside Building)

Concept

Call elevator on mobile application
Detect ibeacons via bluetooth
Get beaconMajorCode and beaconMinorCode

Flow

flowchart
sequence diagram

Pass beacon codes to system
System find towerID by beacon codes from database (Location Mapping Data)
Database return towerID to system
System find locations from database by towerID (Tower Data)
Also filtered by accessible locations by Person Data
Database return available locations to system
System find tenant from database by locationID (Tenant Data)
Database return tenant data to system
System return tenant, locations and tower data to mobile application for display
Mobile request call lift (system -> fs)

Special Case Handling

Users might got bluetooth signals from iBeacon even though they haven't passed the turnstile.
For this scenario, FS prepares an API to MTEL to get the status that determine wether the users can call elevator via mobile app.

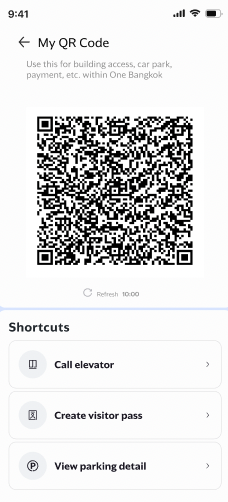

Alt text

When user click Call elevator button, MTEL needs to call API to check the users are capable of calling the lift.

FS APIs

The APIs prepared from FS to MTEL

Call Lift

Refer to here

https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/api/AuthorizeFloor/getCallLift

request

{
  "personID": "7C0426AF-EE20-4D8F-A7AD-305A5CAC65ED",
  "locationID": "1",
  "destinationFloorID": "17"
}

response

{
  "message": "Successfully!",
  "status": 0,
  "data": {
    "personID": "7c0426af-ee20-4d8f-a7ad-305a5cac65ed",
    "liftName": "D",
    "floorID": 17,
    "floorName": "L17"
    }
}

example

curl --location 'https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/api/AuthorizeFloor/getCallLift' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer xxx' \
--data '
{
  "personID": "a50c364f-52ef-4d8c-96f4-67c854ef8ca7",
  "locationID": 1,
  "floorID": 12
}'

MTEL APIs

The APIs prepared from MTEL to FS

Lift Notification

For FS to notify MTEL when lift has been called, intends to display lift information Refer to here TBC

Visitor Pass

Flow

Create pass on mobile application and share to the visitor
Visitor enter the building and passed the turnstile
Forward System sends notification to an API endpoint that provided from MTEL

Visitor Pass Creation

https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/api/PreRegister/invitePreRegister

request

{
  "guestInviteDocNo": '11111111111111111',
  "guestInviteName": 'John Doe',
  "tenantID": 1, // from tenantMapping data to Mtel API
  "locationID": 3, // from locationMapping data to Mtel API
  "personID": "14342eb6-6690-40b4-bc74-f68cbac5e70a",
  "inviteSchedule": [
    {
    "endDate": "2024-10-17T17:32:38.257Z",
    "startDate": "2024-10-17T07:32:38.257Z"
    }
  ]
}

response

{
  "message": "Successfully!",
  "status": 0,
  "data": {
    "inviteID": "27a449a8-7ea2-4934-26ae-08dba4b3d0e9"
  }
}

example

curl --location 'https://onebangkok-api.dreamy-germain.119-59-118-127.plesk.page/api/PreRegister/invitePreRegister' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer {eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJVc2VyX0lEIjoiMTAwMDAiLCJSb2xlX0lEIjoiMiIsIlVzZXJfTmFtZSI6Im10ZWwiLCJuYmYiOjE2OTg0MDM3NzEsImV4cCI6MTY5OTAwODU3MSwiaWF0IjoxNjk4NDAzNzcxLCJpc3MiOiJGb3J3YXJkU3lzdGVtIiwiYXVkIjoiRm9yd2FyZFN5c3RlbSJ9.uaepaEiWyW0JxZ4HeCMDFZHPAxp2RrZcWfAI2VchNq8}' \
--data '{
    "guestInviteDocNo": "1111111111111221111",
    "guestInviteName": "John Doe",
    "tenantID": 24,
    "locationID": 2,
    "personID": "a50c364f-52ef-4d8c-96f4-67c854ef8ca7",
    "inviteSchedule": [
        {
            "endDate": "2023-11-18T17:32:38.257Z",
            "startDate": "2023-11-18T07:32:38.257Z"
        }
    ]
}'

Visitor Pass Acknowledgement

The API need to be created by MTEL side, the payload format below is returned from FS side

{
  "notifyData": [
    {
      "personID": "cdbae67e-e525-4f4b-9623-228785792028",
      "liftName": "C",
      "floorID": 3,
      "floorName": "3"
    },
    {
      "personID": "dcd96733-8879-49ba-60ed-08db7baa8193",
      "liftName": "E",
      "floorID": 17,
      "floorName": "17"
    }
  ]
}
